Custom vs. Off-the-Shelf: Why Bespoke Shoulder Rivets Are Essential for Complex Linkages

The performance of a complex mechanical linkage system often hinges on its pivot points. For assemblies requiring exact rotational movement, robust shear strength, and long-term reliability, the shoulder rivet (or shoulder pin) is the critical hinge.

When sourcing these fasteners, mechanical engineers and procurement teams face a pivotal choice: use a standard, off-the-shelf (OTS) part or invest in a bespoke, custom-manufactured shoulder rivet. While OTS rivets offer fast procurement for basic, low-stress applications, bespoke shoulder rivets are an absolute necessity for complex linkages. Customization guarantees precise clearances, eliminates axial play, optimizes material strength, and ensures flawless assembly—preventing premature wear and safeguarding system integrity.

What is a Shoulder Rivet and Its Role in Linkages?

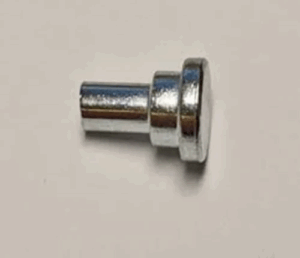

A shoulder rivet features three distinct functional sections:

• The Head: Secures the joint, acts as a thrust bearing surface, and distributes load.
• The Unthreaded Shoulder (Shank): Acts as the precise axle or bearing surface for the pivoting component.
• The Tail (Tenon): Is upset (bucked or clinched) during installation to lock the assembly without crushing the pivoting joint.

Unlike standard blind or solid rivets designed purely to clamp materials tightly together, shoulder rivets are engineered to leave a specific clearance. The smooth, predictable articulation of any multi-bar mechanism depends entirely on the dimensional accuracy and material integrity of this shoulder.

The Hidden Risks of Off-the-Shelf (OTS) Shoulder Rivets

Off-the-shelf fasteners are manufactured to mass-market standards. In a specialized mechanical linkage, forcing a generic commodity part into a precision application introduces significant engineering compromises.

1. Tolerance Mismatch and Excessive “Slop”

Standard rivets are machined or cold-headed with broader tolerance ranges to minimize mass-production costs. In a complex linkage, if the shoulder diameter is even slightly smaller than the mating hole, it creates excessive clearance, commonly known as “slop” or “play.”

• The Result: This microscopic play amplifies vibration, causes erratic mechanism movement, and leads to rapid galling and wear on both the rivet and the linkage arms.

2. Suboptimal Material Selection

OTS shoulder rivets are generally limited to commercial-grade low-carbon steel, basic aluminum, or standard 304 stainless steel. They ignore the specific environmental stressors of your application. Using standard zinc-plated steel in a highly corrosive environment or standard aluminum under extreme cyclical shear loads guarantees early fatigue failure.

3. Compromised Geometry and Spacing

Complex linkages often require strict axial spacing. Standard shoulder lengths force engineers to use shims (adding failure points) or redesign adjacent components. Furthermore, generic head profiles may not provide adequate load distribution or might interfere with nearby moving parts in tight spatial envelopes.

The Bespoke Advantage: Purpose-Built Precision

Custom-manufactured shoulder rivets are engineered from the ground up to match your exact CAD specifications. This elevates the fastener from a disposable commodity to a performance-enhancing component.

Unmatched Dimensional Control

Custom manufacturing allows you to dictate micro-tolerances. Whether your application demands a specific clearance fit (e.g., holding a shoulder diameter to strict ±0.02mm tolerances) or a highly polished surface finish on the shank to reduce friction, bespoke engineering ensures smooth, bind-free rotation.

Task-Specific Alloys and Heat Treatments

With bespoke production, you dictate the metallurgy based on operating conditions:

• High-strength alloy steels (e.g., 4140 or 4340) with custom heat treatments for extreme shear resistance.
• 316/316LVM Stainless Steel for harsh marine, chemical processing, or medical environments.
• Brass or Copper alloys for specialized applications requiring electrical conductivity.
• Specialized platings (Zinc-Nickel, Electroless Nickel PTFE, Passivation) for enhanced lubricity and corrosion resistance.

Optimized Head and Shoulder Geometry

Need an ultra-low-profile head for tight clearances? A specific under-head fillet radius to reduce stress concentration? Or a non-circular tenon (like a D-shape, square, or knurl) to prevent rotation in the mounting plate? Custom tooling makes this possible without compromising the surrounding assembly.

Beyond Dimensions: The Critical Role of Custom Installation Features

One of the most overlooked aspects of fastening is the assembly process itself. Standard rivets often crack or split during clinching if the material is too hard, or they deform the shoulder if too soft. Custom manufacturing solves this at the metallurgical level:

• Localized Annealing: We can selectively heat-treat the rivet. The shoulder remains hardened for maximum wear resistance, while the tail (tenon) is selectively annealed to become highly ductile. This ensures a clean, predictable roll or clinch without fracturing the metal or accidentally locking the linkage tight.
• Chamfered Tails: For high-volume automated assembly lines using vibratory bowl feeders, custom chamfers on the tail end ensure flawless insertion into pre-drilled holes, drastically reducing assembly downtime.

Quality Control: Mitigating Supply Chain Risk

For B2B OEMs, traceability and documented quality are non-negotiable. OTS components often come with limited documentation. A specialized custom fastener manufacturer provides rigorous quality assurance:

• Optical Sorting: Automated 100% optical inspection systems ensure 0 PPM (Parts Per Million) dimensional defects before shipping.
• Performance Testing: Documented shear strength testing and 72-hour (or higher) Salt Spray Testing for corrosion resistance.
• Compliance: Full PPAP (Production Part Approval Process) Level 3 documentation, material certifications, and RoHS/REACH compliance tailored to your industry standards.

Case Study: Eliminating Linkage Failure in Automated Packaging Machinery

Consider the multi-bar mechanical linkages driving the sealing jaws of high-speed automated packaging machines.

An OEM was experiencing premature failures using standard, off-the-shelf steel shoulder rivets. The broad dimensional tolerances of the OTS rivets created micro-vibrations during the rapid, repetitive sealing cycles. Over time, this “slop” caused severe galling, eventually leading the pivot points to seize or snap off entirely, causing expensive unscheduled downtime for end-users.

The Custom Solution: By transitioning to a bespoke shoulder rivet, the OEM specified a 4140 alloy steel with a highly controlled ±0.015mm shoulder clearance fit. The rivets were coated with Electroless Nickel for superior lubricity to combat the continuous friction. Furthermore, localized annealing on the tenon allowed the assembly team to secure the rivet perfectly without compressing the linkage arms.

The Result: The bespoke rivets eliminated the micro-vibrations. The cycle life of the sealing jaw mechanism increased by over 300%, drastically reducing warranty claims and maintenance costs.

Quick Comparison: OTS vs. Custom Shoulder Rivets

Partner with RivetJL for Precision Fastening Solutions

Don’t let a generic fastener dictate the performance of your complex engineering design. The upfront investment in a custom component is invariably outweighed by the long-term savings in maintenance, assembly efficiency, and brand reputation.

At RivetJL, we specialize in the custom manufacturing of high-precision shoulder rivets and bespoke fasteners. From advanced cold heading to secondary CNC machining, our facility is equipped to meet your exact tolerances, material specifications, and surface finish requirements.

Contact our engineering team today to discuss your blueprints, request a sample, and ensure your linkages operate flawlessly for their entire service life.
